Pipe Flanges - SS

Stainless steel flanges are essential components used to connect pipes, valves, fittings, and other equipment in piping systems. They provide a means of joining or terminating pipes securely, allowing for easy assembly, disassembly, and maintenance. Here's an overview of stainless steel flanges:

1. Composition:

• Stainless steel flanges are typically made from corrosion-resistant stainless steel alloys such as 304, 316, and 316L. These alloys contain chromium, nickel, and other elements that provide excellent resistance to corrosion, oxidation, and chemical attack.

2. Types of Stainless Steel Flanges:

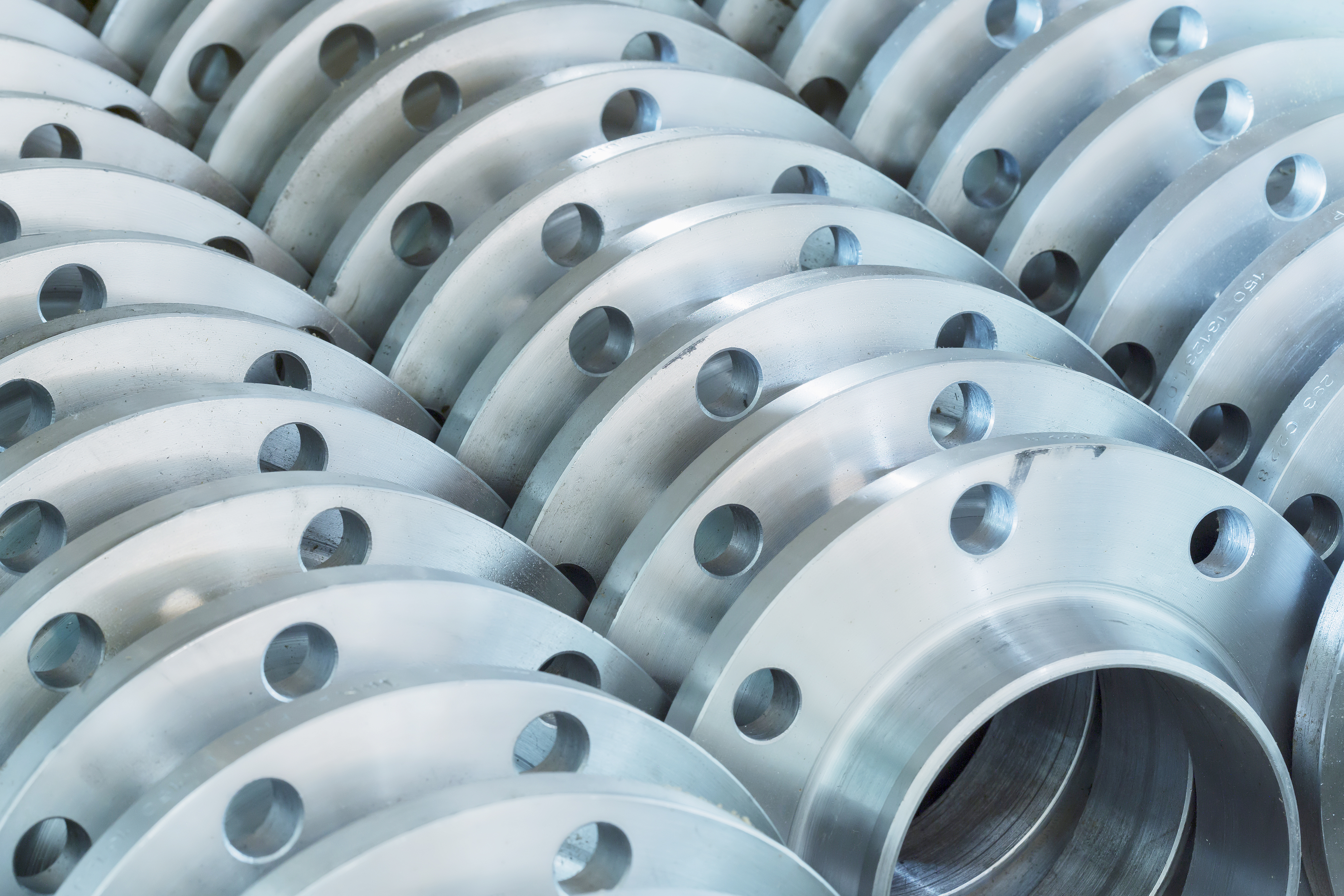

• Weld Neck Flanges: Weld neck flanges feature a long tapered hub, which provides reinforcement and facilitates smooth flow transition between pipes. They are welded to the pipe for added strength and stability, making them suitable for high-pressure and high-temperature applications.
• Slip-On Flanges: Slip-on flanges have a raised face and a bore slightly larger than the outer diameter of the pipe, allowing the pipe to slip into the flange before welding. They are easy to align and install, making them suitable for low-pressure and non-critical applications.
• Blind Flanges: Blind flanges are solid discs with no bore, used to seal the end of a piping system or vessel. They are commonly used to close off piping systems temporarily or to access inspection openings.
• Socket Weld Flanges: Socket weld flanges have a recessed area (socket) that accommodates the pipe for welding. They provide good flow characteristics and are suitable for smaller pipe sizes and high-pressure applications.

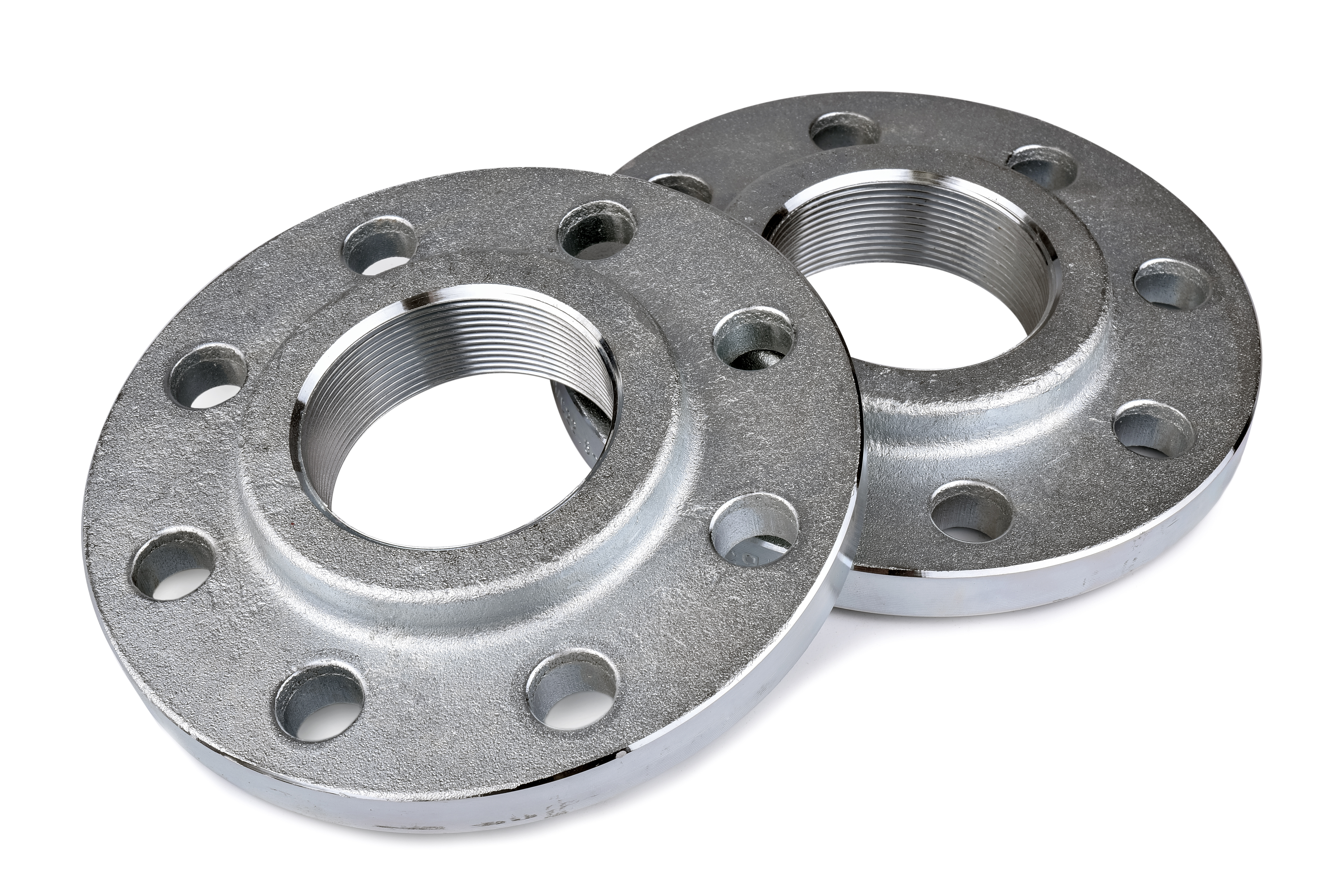

• Threaded Flanges: Threaded flanges have internal threads that allow them to be screwed onto threaded pipes or fittings. They are commonly used in low-pressure and non-critical applications where welding is not feasible.
• Lap Joint Flanges: Lap joint flanges consist of two parts: a stub end and a backing flange. The stub end is welded to the pipe, while the backing flange slides over the pipe and is free to rotate. They allow for easy alignment and assembly but are not suitable for high-pressure applications.
• Orifice Flanges: Orifice flanges are used in orifice metering systems to measure the flow rate of fluids. They feature concentric or eccentric orifice openings and are installed between two flanges in a piping system.

3. Standards and Specifications:

• Stainless steel flanges are manufactured according to various industry standards and specifications, including ASME/ANSI B16.5, ASME B16.47, ASTM A182, and MSS SP-44. These standards define dimensions, materials, pressure ratings, and testing requirements for flanges used in different applications.

4. Applications:

• Stainless steel flanges are used in a wide range of industries and applications, including oil and gas, chemical processing, petrochemical, power generation, water treatment, pharmaceuticals, food and beverage, and shipbuilding.
• They are used to connect pipes, valves, pumps, and other equipment in piping systems, providing secure and leak-proof joints that withstand high pressures, temperatures, and corrosive environments.

5. Installation and Maintenance:

• Proper installation of stainless steel flanges involves aligning the flanges accurately, ensuring proper gasket placement, and tightening bolts evenly to prevent leaks.
• Regular inspection and maintenance of flanges are essential to detect signs of wear, corrosion, or damage, which can compromise the integrity of the piping system. Flange gaskets should be replaced periodically to maintain a reliable seal.

Stainless steel flanges play a crucial role in piping systems, providing secure and leak-proof connections that withstand the rigors of industrial applications. Whether in high-pressure or corrosive environments, stainless steel flanges offer durability, reliability, and longevity, making them indispensable components in various industries.
