Pipe Fittings - SS

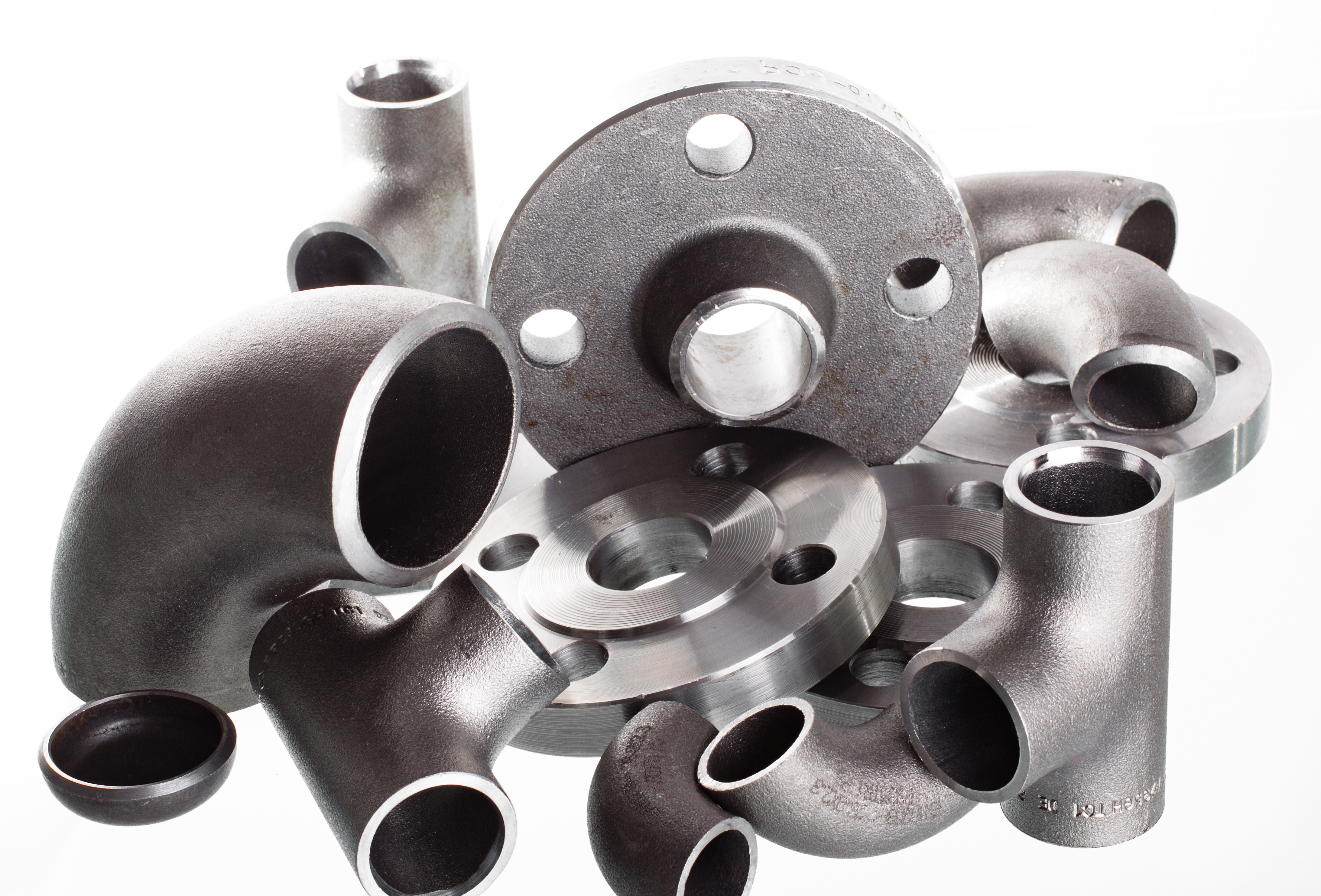

product image

Stainless steel pipe fittings are components used to connect, control, or change the direction of stainless steel pipes in plumbing, piping, and industrial applications. These fittings are crucial for creating reliable and leak-free piping systems in various industries. Here's an overview:

1. Types of Stainless Steel Pipe Fittings:

  • Elbows: Elbows are fittings that allow for directional changes in piping systems. They come in various angles, such as 45 degrees and 90 degrees, to accommodate different layout requirements.

  • Tees: Tees have a T-shaped design and allow for the branching of piping systems into two or more directions. They are commonly used to create junctions in pipelines.

  • Reducers: Reducers are used to connect pipes of different diameters or sizes. They can either be concentric (with both ends aligned) or eccentric (with one end offset).

  • Couplings: Couplings are used to join two pipes together. They come in various types, including threaded couplings, socket weld couplings, and butt weld couplings.

  • Flanges: Flanges are flat, circular fittings with bolt holes around the perimeter. They are used to connect pipes, valves, or equipment to form a tight seal. Stainless steel flanges are commonly used in high-pressure and high-temperature applications.

  • Unions: Unions are similar to couplings but allow for easy disassembly of pipes or fittings. They consist of three parts: a male end, a female end, and a nut that connects the two ends together.

  • Caps: Caps are used to close off the end of a pipe or fitting. They are commonly used to seal unused pipe ends or as a protective cover.

2. Materials and Grades:

  • Stainless steel pipe fittings are typically made from austenitic stainless steel grades such as 304 and 316 due to their corrosion resistance, durability, and suitability for various applications.

  • In addition to standard stainless steel, special alloys and coatings may be used for specific applications requiring enhanced corrosion resistance, high temperature resistance, or compatibility with aggressive chemicals.

3. Manufacturing Processes:

  • Stainless steel pipe fittings are manufactured using various processes, including casting, forging, machining, and welding.

  • Casting involves pouring molten stainless steel into molds to create fittings with complex shapes and intricate details.

  • Forging involves shaping heated stainless steel billets using compressive forces to produce strong and durable fittings.

  • Machining processes such as drilling, milling, and threading may be used to achieve precise dimensions and tolerances in fittings.

  • Welding processes such as butt welding, socket welding, and threaded welding are used to join fittings to pipes or other fittings.

4. Applications:

  • Stainless steel pipe fittings are used in a wide range of industries and applications, including:

    • Plumbing and water supply systems in residential, commercial, and industrial buildings.
    • Chemical processing plants, refineries, and petrochemical facilities.
    • Food and beverage processing industries, where hygiene and corrosion resistance are essential.
    • Pharmaceutical and biotechnology industries, where cleanliness and sterility are critical.
    • Oil and gas exploration, production, and transportation systems.
    • HVAC (heating, ventilation, and air conditioning) systems in buildings and vehicles.

5. Installation and Maintenance:

  • Proper installation of stainless steel pipe fittings is crucial to ensure the integrity and reliability of piping systems. Fittings should be correctly sized, aligned, and secured according to industry standards and best practices.

  • Regular maintenance, inspection, and testing of stainless steel pipe fittings are essential to identify and address any leaks, corrosion, or other issues that may compromise the performance of piping systems.

Stainless steel pipe fittings play a vital role in creating durable, reliable, and leak-free piping systems in various industries. Whether for plumbing, chemical processing, food production, or other applications, selecting the right stainless steel fittings and ensuring proper installation and maintenance are essential for optimal performance and longevity.

ASTM A403/A403M - Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings:

  • This specification covers wrought austenitic stainless steel pipe fittings for pressure piping applications. It includes seamless and welded fittings in various shapes such as elbows, tees, reducers, crosses, caps, and stub ends. The fittings covered are intended for use in high-temperature and corrosive environments.

ASTM A774/A774M - Standard Specification for As-Welded Wrought Austenitic Stainless Steel Fittings for General Corrosive Service at Low and Moderate Temperatures:

  • This specification covers as-welded wrought austenitic stainless steel fittings for general corrosive service at low and moderate temperatures. It includes fittings such as elbows, tees, reducers, and caps manufactured by welding process.

ASTM A815/A815M - Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings:

  • This specification covers wrought ferritic, ferritic/austenitic (duplex), and martensitic stainless steel pipe fittings for pressure piping applications. It includes seamless and welded fittings in various sizes and shapes, suitable for corrosive and high-temperature service.

ASTM A182/A182M - Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service:

  • While primarily focusing on flanges and valves, ASTM A182 also covers forged stainless steel fittings for high-temperature service. This specification includes materials like stainless steel grades 304, 316, 321, 347, and others.

ASME B16.9 - Factory-Made Wrought Steel Butt-Welding Fittings:

  • ASME B16.9 covers dimensions, tolerances, materials, and markings for factory-made wrought stainless steel butt-welding fittings. These fittings include elbows, tees, reducers, caps, and other types of fittings used for connecting pipes in various piping systems. It specifies dimensions such as wall thickness, outside diameter, and center-to-end dimensions.

ASME B16.11 - Forged Fittings, Socket-Welding and Threaded:

  • ASME B16.11 covers dimensions, tolerances, materials, testing, and marking requirements for forged stainless steel fittings with socket-welding or threaded connections. These fittings include elbows, tees, couplings, plugs, and unions used for high-pressure and high-temperature applications. It specifies pressure ratings, dimensions, and materials for different types and sizes of fittings.

ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns:

  • ASME B16.28 covers dimensions and tolerances for wrought stainless steel short radius elbows and returns used in piping systems. It specifies the dimensions, tolerances, and end preparation of elbows and returns, particularly for tight spaces where a short radius bend is required.

ASME B16.3 - Malleable Iron Threaded Fittings:

  • ASME B16.3 covers dimensions, tolerances, materials, and testing requirements for malleable iron threaded fittings, including stainless steel fittings. These fittings include elbows, tees, couplings, unions, and plugs with threaded connections. While primarily focused on malleable iron fittings, ASME B16.3 also includes provisions for stainless steel threaded fittings.

ASME B16.5 - Pipe Flanges and Flanged Fittings:

  • ASME B16.5 covers dimensions, tolerances, materials, testing, and marking requirements for pipe flanges and flanged fittings made of stainless steel and other materials. It includes specifications for flange types such as weld neck, slip-on, blind, lap joint, and threaded flanges, as well as flanged fittings such as elbows and tees.
